永华精工扣压接头美制JIC外螺纹74 °外锥面16711

16711

美制JIC外螺纹74 °外锥面

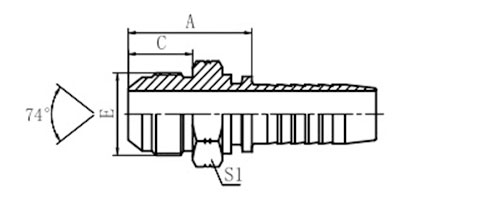

JIC MALE 74 °CONE

ISO 8434-2------SAE J514

代号 管子外径D 软管HOSE BORE 尺寸 DIMENSIONS
PART NO. TUBE O.D. 公称内径DN 标号DASH A C S1
16711-04-03 7/16"X20 5 03 26 14 12
16711-04-04 7/16"X20 6 04 26.5 14 12
16711-05-04 1/2"X20 6 04 26.5 14 14
16711-05-05 1/2"X20 8 05 26.5 14 14
16711^)5-06 1/2"X20 10 06 26.5 14 17
16711-06-04 9/16"X18 6 04 26.5 14.1 17
16711-06-05 9/16"X18 8 05 26.5 14.1 17
16711-06-06 9/16"X18 10 06 26.5 14.1 17
16711-08-06 3/4"X16 10 06 31.5 16.7 22
16711-08-08 3/4"X16 12 08 32 16.7 22
16711-10-06 7/8"X14 10 06 32 19.3 24
16711-10-08 7/8"X14 12 08 34.3 19.3 24
16711-10-10 7/8"X14 16 10 35.5 19.3 24
16711-12-08 1.1/16"X12 12 08 39 21.9 30
16711-12-10 1.1/16"X12 16 10 40 21.9 30
16711-12-12 1.1/16"X12 20 12 40 21.9 30
16711-12-16 1.1/16"X12 25 16 41 21.9 30
16711-14-10 1.3/16"X12 16 10 41.5 22.6 32
16711-14-12 1.3/16"X12 20 12 40.6 22.6 3?
16711-16-12 1.5/16"X12 20 12 42.5 23.1 36
16711-16-16 1.5/16"X12 25 16 43.5 23.1 36
16711-20-16 1.5/8"X12 25 16 46.5 24.3 46
16711-20-20 1.5/8"X12 32 20 47.5 24.3 46
16711-24-20 1.7/8"X12 32 20 53 27.5 50
16711-24-24 1.7/8"X12 40 24 53 27.5 50
16711-32-32 2.1/2"X12 50 32 62 33.9 65
注:1.表中代号用于编织软管 2 如需用于缠绕软管代号改为16711-xx-xx.
