永华精工扣压接头NPT布锥管外螺纹15611系列

15611

布锥管外螺纹

NPT MALE

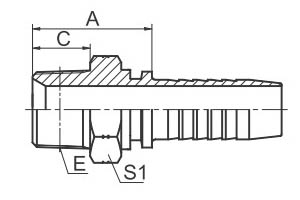

代号 PART NO. 螺纹E THREAD E 软管 HOSE BORE 尺 寸 DIMENSIONS
公称内径DN 标号 DASH A C S1
15611-02-03 Z1/8"X27 5 03 22.5 10.5 12
15611-02-04 Z1/8"X27 6 04 22.5 10.5 12
15611-04-03 Z1/4"X18 5 03 27.5 15 17
15611-04-04 Z 1/4"X 13 6 04 28 15 17
15611-04-05 Z1/4"X18 8 05 28 15 17
15611-04-06 Z1/4"X18 10 06 27 15 17
15611-06-04 Z3/8"X18 6 04 28 16 19
15611-06-05 Z3/8"X18 8 05 28 16 19
15611-06-06 Z3/8"X18 10 06 30 16 19
15611-06-08 Z3/8"X18 12 08 305 16 19
15611-08-06 Z1/2"X14 10 06 34.5 19.5 22
15611-08-08 Z1/2"X14 12 08 34.5 195 22
15611-08-10 Z1/2"X14 16 10 36 19.5 22
15611-12-08 Z3/4"X14 12 08 37.5 19.5 27
15611-12-10 Z3/4"X14 16 10 38 19.5 27
15611-12-12 Z3/4"X14 20 12 38.5 19.5 27
15611-12-16 Z3/4"X14 25 16 39.5 19.5 32
15611-16-10 Z1"X11.5 16 10 45 25.5 36
15611-16-12 Z1"X15 20 12 45 25.5 36
15611-16-16 Z1"X1 5 25 16 44.5 25.5 36
15611-20-16 Z1.1/4"X11.5 25 16 49.5 26.5 46
15611-20-20 Z1.1/4"X11.5 32 20 49 26.5 46
15611-24-24 Z1.1/2"X11.5 40 24 51 27.5 50
15611-32-32 Z2"X11.5 50 32 55 27.5 65
注:1.表中代号用于编织软管       2.如需用于缠绕软管代号改为15612-XX-XX
