不锈钢扳把式快速接头

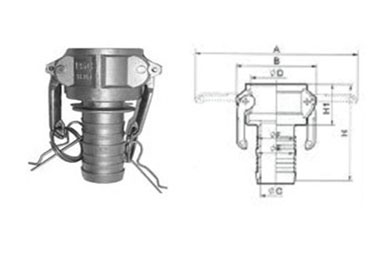

C型-连软管阴接头(扳把式接头)
尺寸 内径 A B φC φD φE φF H1 H
1/2" 15
3/4" 20 115.0 57.0 13.6 32.4 20.7 19.4 30.0 80.0
1" 25 137.0 65.6 20.0 37.3 27.0 25.8 39.0 99.0
1-1/4" 32 183.0 77.0 25.8 46.0 33.9 32.9 46.0 110.0
1-1/2" 40 191.0 85.0 31.3 54.0 40.5 38.6 48.0 114.0
2" 50 201.0 96.0 43.8 63.7 52.0 51.0 53.0 129.0
2-1/2" 65 213.0 110.4 55.7 76.5 66.8 66.0 58.0 151.0
3" 80 267.0 133.0 68.0 92.2 79.0 79.0 58.0 160.0
4" 100 296.0 166.0 92.0 120.0 104.8 104.8 63.0 176.0

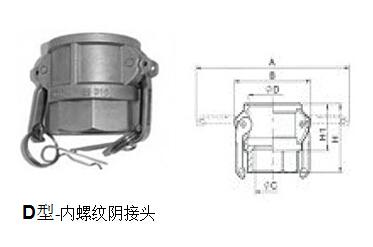

D型-内螺纹阴接头
尺寸 内径 A B φC φD H1 H
1/2" 15 115.0 57.0 17.0 32.4 30.0 46.0
3/4" 20 115.0 57.0 20.0 32.4 30.0 50.0
1" 25 137.0 65.6 26.0 37.3 39.0 60.0
1-1/4" 32 183.0 77.0 34.5 46.0 46.0 66.0
1-1/2" 40 191.0 85.0 40.0 54.0 48.0 70.5
2" 50 201.0 96.0 50.0 63.7 53.0 76.0
2-1/2" 65 213.0 110.4 61.0 76.5 58.0 82.0
3" 80 267.0 133.0 75.0 92.2 58.0 86.0
4" 100 296.0 166.0 100.0 120.2 63.0 92.0

备注:不锈钢扳把式快速接头材质提供铝合金、不锈钢、黄铜、PP材质等;提供外贸出口来图定做;欢迎前来洽谈合作。
